James Bruton’s Face-Managed Car Seems To Be Like Like A Giant LEGO Technic Set, Powered By Arduino UNO Q

Inventor James Bruton is known for his big builds and this one is a doozy: a miniature electrical automotive steered by the movement of his face. He used the model new Arduino UNO Q, a single board computer with a microprocessor, to create a vehicle that mixes progressive tech and palms on engineering.

The physique is constructed from fiberglass tubes, chosen over carbon fiber for his or her energy and price. The tubes sort a modular chassis that’s held together with 3D printed clamps constructed from Polymax PLA, whereas bolts and lock nuts allow it to be taken apart for supply. Two brushless motors drive the rear wheels by means of belt pushed gear reductions, enough to assist Bruton’s weight. The doorway wheels are on stub axles with bearings and linked to {an electrical} steering system powered by two DC gearmotors.

The Arduino UNO Q, a board that mixes precise time administration of a microcontroller with the computing power of a single board computer working Debian Linux is the center of the enterprise. This twin thoughts setup permits the board to take care of every {{hardware}} administration and complicated duties equivalent to AI processing. Bruton used the microcontroller aspect to control the motors just like he would with a typical Arduino Mega. The Linux aspect ran an Edge Impulse AI model to detect his face in a video feed from a USB webcam linked to a flexible stalk. When Bruton leans left or correct the AI detects the movement and sends steering directions to the microcontroller which spins the wheels accordingly.

It’s spectacular how correctly the two halves of the Arduino UNO Q work collectively. Arduino’s App Lab allows you to merge Arduino code with Python or HTML. Bruton used a pre-built face monitoring model from the “bricks” framework which provides makers with modular code blocks for AI. He rejected faces smaller than 100 pixels to remove the background and allow the automotive to be managed solely by his actions. Although the face monitoring is proscribed to 3-4 frames per second the output is intuitive.

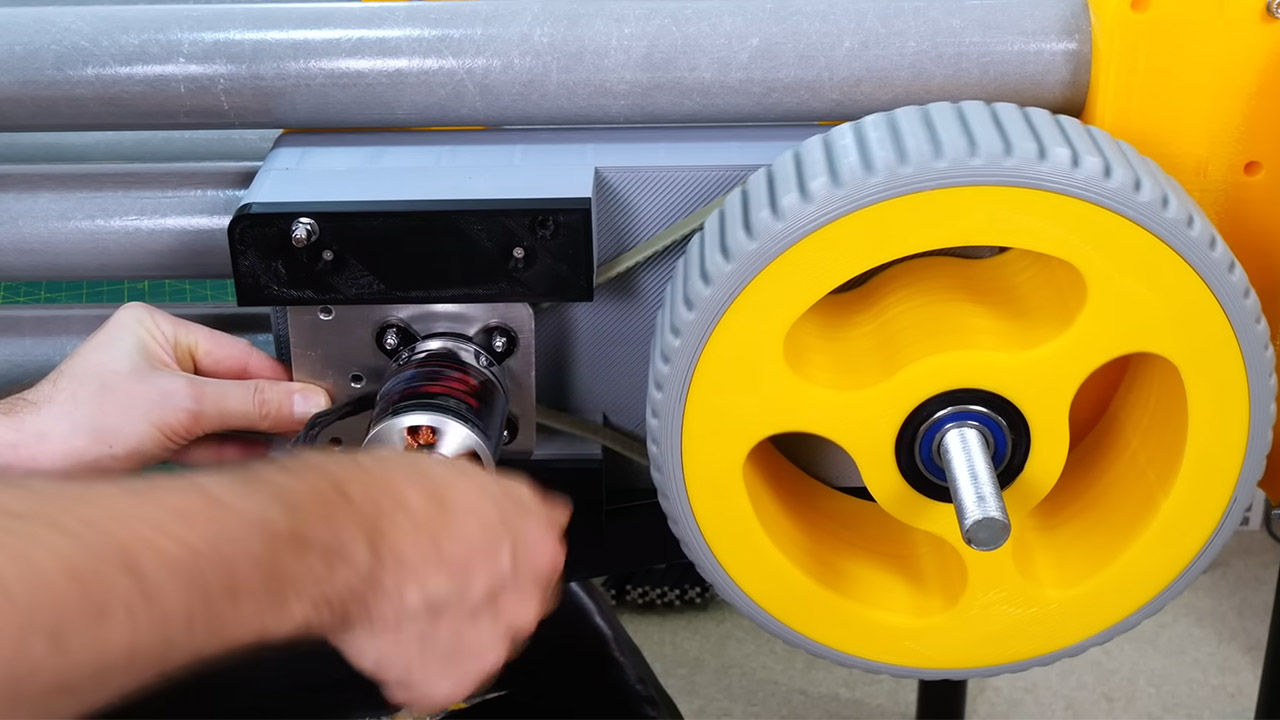

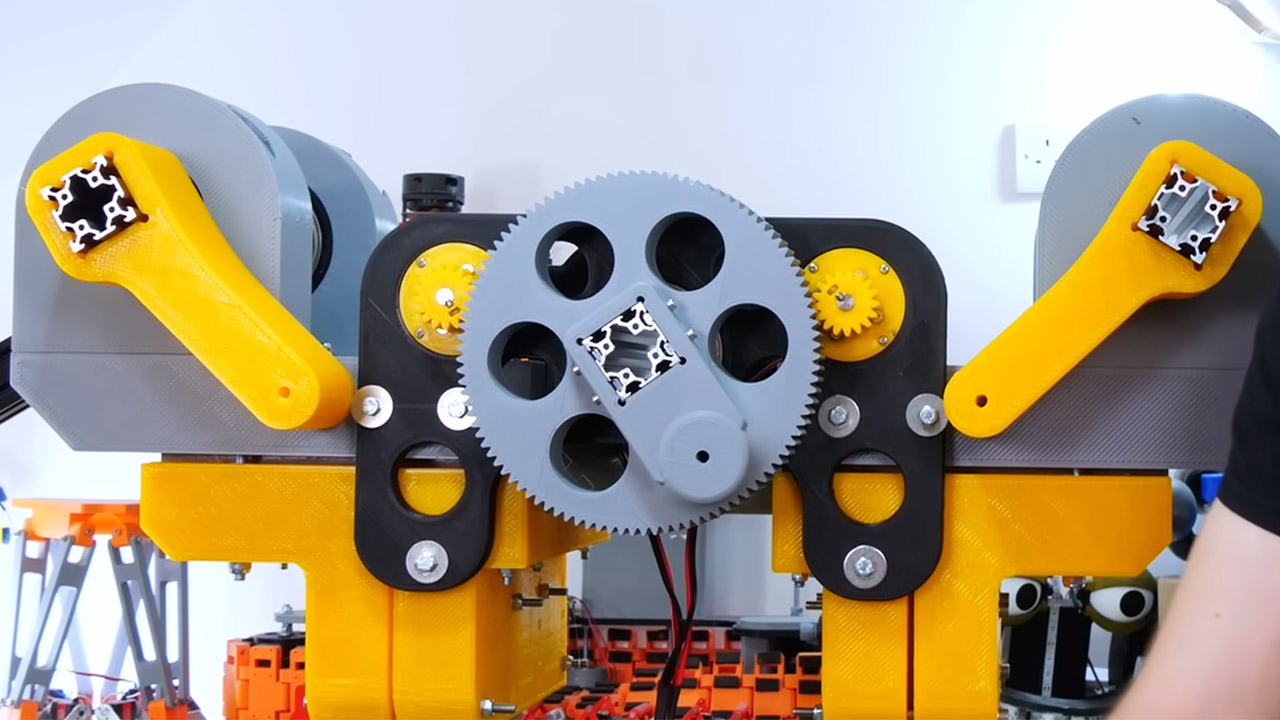

Bruton 3D printed a personalized wheel hub that merely clips onto versatile TPU90 tyres – the correct combination for good grip with none slippage worries. The pulleys that be a part of the brushless motors to the rear axles by means of belts required the precision of a 0.5mm nozzle. They’re held in place by sliding motor mounts that precisely rigidity the belts. The steering system was impressed by an excellent little little bit of engineering generally called Ackermann geometry; it consists of a central gear that pivots the doorway wheels spherical, and a lever system ensures that the inside wheel turns sharper than the floor, allowing the automotive to hug the nook every time. The automotive will get its power from a 6S 24-volt LiPo battery, which is handled by this refined 500-amp contactor. It moreover consists of skateboard ESCs and an emergency stop.

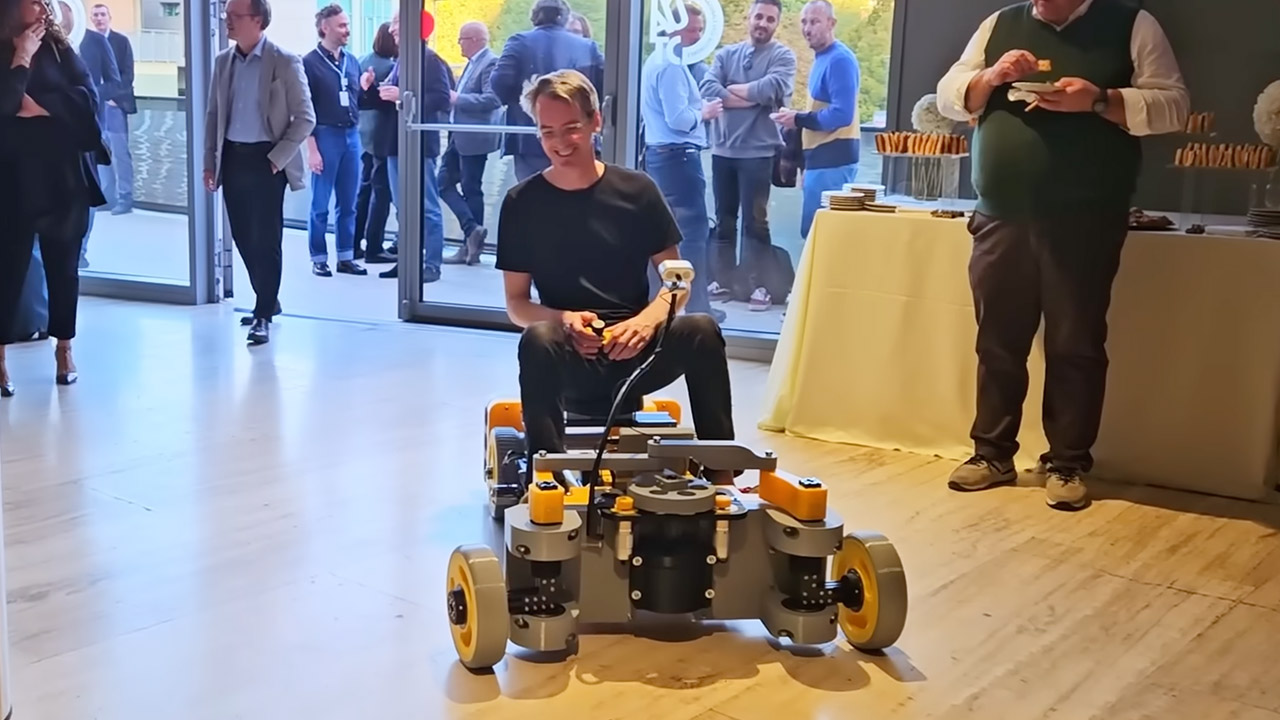

Taking the automotive to Turin was an journey in itself. To make it transportable, Bruton constructed the chassis to interrupt down into containers, which he subsequently delivered to the Nationwide Motor Museum. Each half arrived in a single piece – good work, Bruton – and he merely reassembled and fine-tuned it on-site. They initially used a joystick to calibrate the steering, nevertheless from then on it was all webcam and face-tracking – an excellent idea. On the event, he merely drove the automotive by way of a crowd of 200 to 300 people who’ve been all too preoccupied by their telephones – and he masterfully steered it throughout the lot using the face-tracking system and his private pure leaning to keep up the automotive on observe. They even linked an Arduino Uno Q to the system, allowing Bruton to look at the face-tracking interface on his laptop computer pc using some Wi-Fi strategies.
